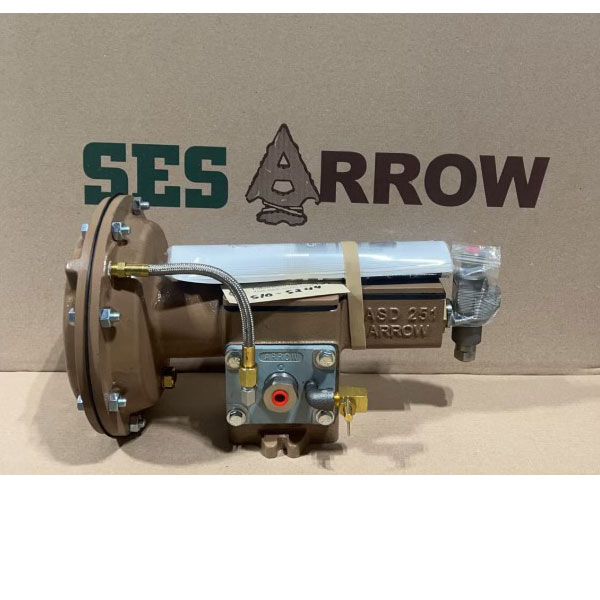

SES Arrow Series 510 Chemical Pump

Description

The Arrow 510 Series is powered by a diaphragm motor with a spring return. This chemical injection pump has an adjustable speed, which is controlled by regualting the exhaust gas discharge.

Features

• Stroke Lengths: 1/3” or 1”
• Plunger sizes: 3/16”,1/4”, 3/8”, 1/2”
• Output: Up to 100 quarts per day depending on plunger size
• Packing & O-rings: Any combination of Buna-N, Fluorosilicone, Hard, Kalrez, Teflon or Viton
• Standard injector heads are supplied with ductile iron body and stainless steel trim
• Complete stainless steel configuration is optional
• Metal-to-metal seats available as alternatives to standard injector head parts
