SES Arrow Series 10 Chemical Pump

Description

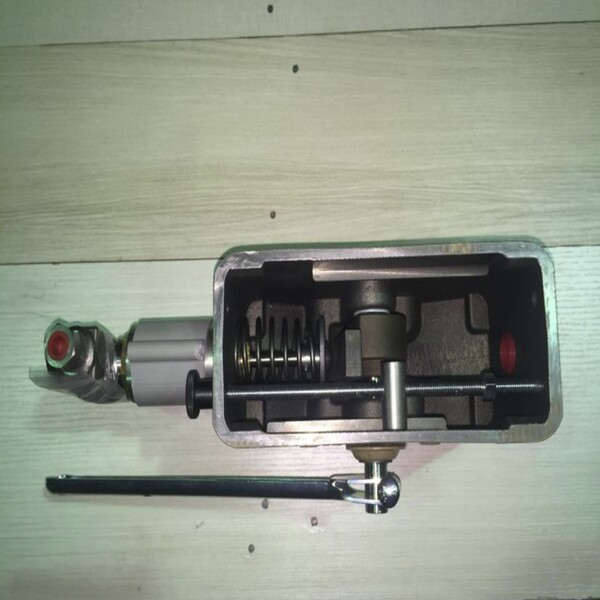

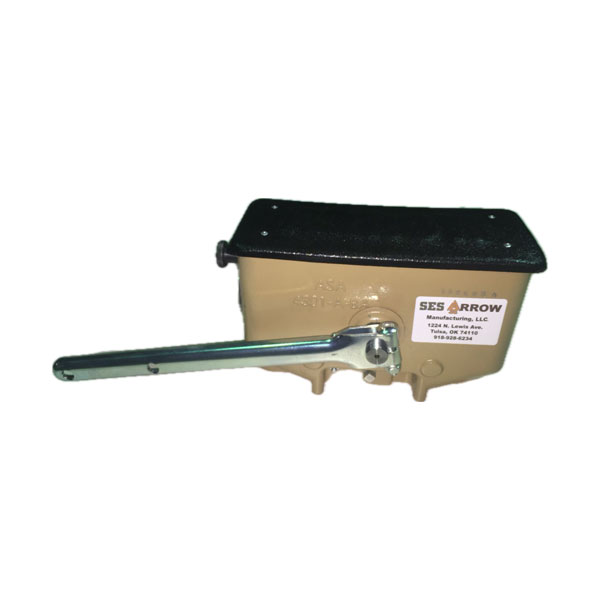

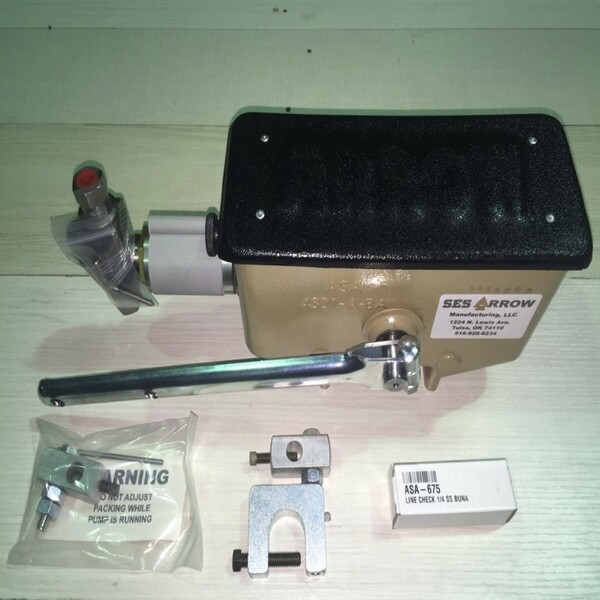

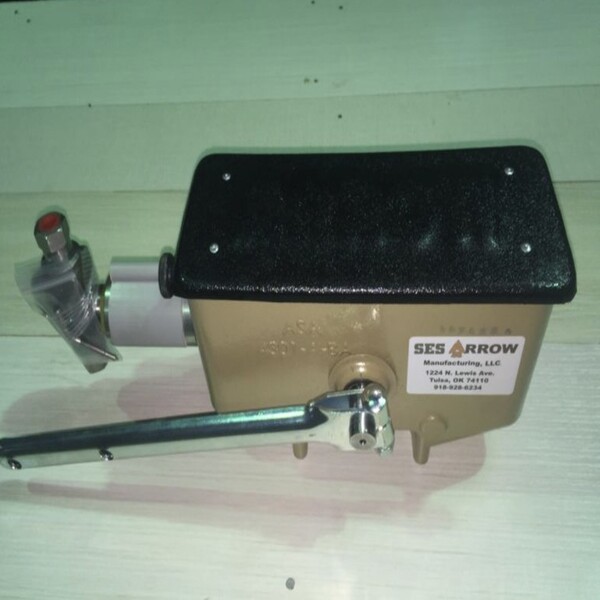

The Arrow 10 Series, or more commonly referred to as the Beam Pump, is a positive displacement pump that is powered by a direct connection with rod, 1/4” pipe or cable to the walking beam or rod line. The 10 Series pumps on the upstroke of the walking beam and then returns to its set position on the downstroke.

FEATURES

• Maximum flow rate dependent on pumpjack’s strokes per minute
• Governing adjustment knob allows for adjustable flow rates
• Head assembly: Single or dual head configurations available
• Plunger sizes: 3/16”,1/4”, 3/8”, 1/2”, 3/4” or 1”
• Packing & O-rings: Any combination of Buna-N, Fluorosilicone, Hard, Kalrez, Teflon or Viton
• Standard injector heads are supplied with ductile iron body and stainless steel trim
• Complete stainless steel configuration is optional
• Metal-to-metal seats available as alternatives to standard injector head parts
